RS485 integrated digital display multichannel temperature transmitter
Product description:
RS485 integrated digital display multichannel temperature transmitter
the transmitter for multi-channel temperature transmitter, the use of industrial standard RS-485 bus, in line with the Modbus protocol output, can connect a variety of external equipment or PC machine.
this product can be designed to have GPRS/433MHz wireless products.
Product description

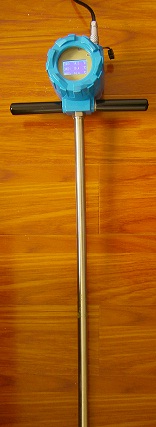

integrated digital multi-channel temperature transmitter is a micro telecontrol device designed for data acquisition and control in the presence of many thermal resistors. The bridge circuit measurement technology unique to our company in the design, with no temperature drift, no lead resistance, strong anti-interference ability, the advantages of bridge circuit and measurement circuit complete isolation etc.. It is made of aluminium alloy waterproof box, with metal isolation net, anti - radio interference and corrosion prevention. The temperature probe is designed with stainless steel probe, and the circular explosion-proof header is strong, corrosion resistant, durable, anti-interference, and has a large range of humidity.
Functional characteristics
4~8 way isolation thermal resistance input, three wire connection method
1 way isolated RS485 communication interface, communication baud rate 9600
Support MODBUSRTU specification
system parameter
RTD signal input
4~8 way RTD signal isolation input three wire system connection
The measuring range is C50 DEG C, ~300 DEG C
The measuring resolution is 0.1 degrees centigrade
The conversion accuracy is + 0.1 centigrade
Temperature measuring accuracy: + 0.2
The temperature stability is better than that of 100PPMM
Isolation voltage is less than 1500V
Temperature stability characteristic better than 100PPMM
Serial parameters: 9600, N, 8,1
Display: LCD LCD window
Specification size: can be customized according to customer requirements.
