Integrated intelligent flame-proof type temperature transmitter


SBW series integrated explosion-proof temperature transmitter




Product number
HX-RS-SBW4480
Product name
Integrated intelligent flame-proof type temperature transmitter
Product description

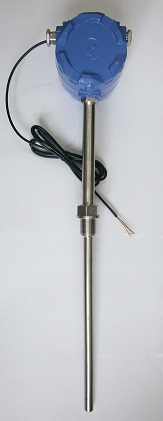

The temperature measuring probe of the integrated intelligent flameproof temperature transmitter is composed of three parts: an explosion-proof junction box, a process connection and a temperature measuring protection tube. The flameproof temperature transmitter adopts explosion proof isolation junction box, which can effectively prevent the explosion vibration from damaging the transmitter. It can protect the circuit and avoid the safety of sparks.
Temperature probe integrated intelligent flameproof temperature transmitter with platinum resistance, high precision, good stability; in one set of sensor transmission, compact structure, convenient installation, high precision, low power consumption; current output type is suitable for long distance transmission, anti electromagnetic interference circuit design, to ensure safe and reliable in the transmitter to be subjected to various disturbances suitable for modern work, serious electromagnetic pollution environment;
The overall sealing performance is good, the temperature range and the size of the form can be ordered by the customerFlexible and convenient; products, reasonable structure design, process connection interface flexibility, small size, light weight, installation position of any shell; protection of different materials, to adapt to a variety of media measurement standard pipe thread installation.
technical parameter
(1) input signal: PT100, PT1000
(2) output signal: 4 ~ 20mA, intrinsically safe
(3) linearity: the output signal is linearly corresponding to the temperature
(4) accuracy: ≤ ± 0.1%; ≤ ± 0.2%
(5) power supply voltage: 9 ~ 30VDC
(6) environmental temperature: -40 ~ +85 centigrade;
(7) temperature drift coefficient: ± 0.01%/ DEG C;
(8) isolation strength: AC1500v 1 minutes between input / output
(9) voltage fluctuation effect: ± 0.005% X range / V DC below
(10) insulation resistance: &ge / /DC500V between input / output; 100MΩ
(11) load capacity: RL= (U-8.0v) /0.022A
(12) voltage input: input impedance 5MΩ above
(13) input detection current: 0.2mA (2w/3w/4w);
(14) thermal resistance / resistance input: input impedance 5MΩ above
(15) fusing alarm detection current: 5μ A;
Product model
Structure features of integrated intelligent flameproof temperature transmitter
SBW4480
Without fixing device
SBW4482
Fixed threads with cold ends
SBW4483
Fixed threads without cold ends
SBW4484
Fixed flange
SBW4485
Movable flange
SBW4486
Movable sleeve thread
SBW4487
Fixed thread (tapered protective sleeve)
SBW4488
Movable flange (right angle bend)
SBW4489
The protective sleeves are special materials such as ceramics, corundum, etc., or need special treatment (strong acid and alkali, salt resistance, corrosion resistance, etc.)
For details download, click: http://www.bjhxrs.com.cn/cn/dow.asp, id=67

Examples of structural features are described
Example of structure and shape
Object example
SBW4482 - Fixed threads with cold ends



SBW4484 -- fixed flanges


SBW4482 digital display flameproof series



SBW4482 integrated flameproof box series



Introduction of parameter selection
project
Code
Select     item
Accuracy class
One
0.1%FS (minimum range 50 DEG C)
Two
0.2%FS (minimum range 100 DEG C)
Three
Customer specified
Assembly form
G
prefabricated
K
Armoured
Field display
Zero
No display
One
LCD digital display
Junction box
One
Integrated flame-proof junction box
Two
2088 flameproof junction box
Three
Digital explosion proof box
Four
Stainless steel terminal box
Five
Special customized.
Outer diameter of protective tube

prefabricated
Φ 4 ~ Φ 20.0mmArmoured
Φ 3 ~ Φ 8.0mm
Special specifications
The negotiation order
Total length

TL: no junction box (mm)
Insertion depth

EL: (mm)
Texture of material

4 (SUS304); 6 (SUS316L); 2 (SUS321); 9 (GH3039);
Process connection

When ordering, specify thread size and flange size
range

-200 to 600 degrees, customer specified
Introduction of some commonly used process connecting threads
Outline structure drawing
Thread specification
Thread L (mm)
The opposite edge S (mm)
H (mm)











M8
Ten
Twelve
Six
M10
Twelve
Fourteen
Six
M12
Fifteen
Sixteen
Eight
M16
Fifteen
Twenty-two
Eight
M20
Eighteen
Twenty-seven
Ten
M27
Thirty
Thirty-two
Fifteen
M33
Thirty-three
Thirty-six
  20`

G1/8
Twelve
Fourteen
Six
G1/4
Fifteen
Eighteen
Eight
G3/8
Fifteen
Twenty-two
Eight
G1/2
Eighteen
Twenty-seven
Ten
G3/4
Twenty
Thirty-two
Fifteen

NPT 1/8
Twelve
Fourteen
Six
NPT 1/4
Fifteen
Eighteen
Eight
NPT 3/8
Fifteen
Twenty-two
Eight
NPT 1/2
Eighteen
Twenty-seven
Ten
NPT 3/4
Twenty
Thirty-two
Fifteen
NPT1
Twenty-five
Thirty-eight
Fifteen
Some commonly used fixed flanges are introduced
Fixed flange parameter
Outline of fixed flange
Code
D
D1
D2
D3D

F1
Ninety-five
Sixty-five
Forty-five
12 or 16
Fourteen
F2
One hundred and five
Seventy-five
Fifty-five
12 or 16
Fourteen
F3
One hundred and fifteen
Eighty-five
Sixty-five
12 or 16
Fourteen
Symbolic description
D: fixed flange diameter     D3: protective tube diameter
D1: location hole concentric circle diameter
D: the diameter of the locating hole (4 in number)
